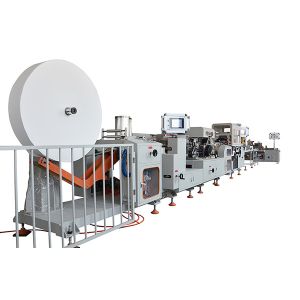

    120 Packs/Min Pocket Tissue Machine Production Line 380V 50Hz

    Ask Lasest Price
    Brand Name : YouYuan
    Model Number : YY-H150
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50 Sets Per Month
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    120 Packs/Min Pocket Tissue Machine Production Line 380V 50Hz

    Automatic Pocket Tissue Machine Production Line Mini Type And Standard Type


    Description


    YY-H150 Automatic pocket tissue production line is developed for customers targeting high production capacity and excellent pocket tissue products. Compact design and easy adjustment help operators to have full control of functionality and production of the machine. Both mini and standard pocket tissue can be produced on the line with high efficiency.


    Technical Specification


    YY-H150 Full Automatic Pocket Tissue Production Line
    1. Pocket Tissue Format

    (1) Single pocket tissue unfold size:square: 200mm±2 mm 210mm±2 mm

    (2) Single pocket tissue folded size:Mini: 72 mm±0.5 mm×53.5mm±0.5 mm (L*W)

    Standard: 105mm±0.5 mm×53.5 mm±0.5 mm (L*W)

    (3) Side embossing is symmetrical and tolerance is 5 mm


    2. Machine Size16100*2000*2000.mm (L*W*H)
    3. Electric power30.5KW

    4. Bundling Unit Specification


    (1) Packing speed:Design speed≤25mbaler/min, Product speed:≤20mbaler/min;

    (2) Packing size: Length: 75mm-105mm;

    Thickness: 24±2mm;Width: 50mm±2mm;

    Bundling style: 2X3;2X4;2X5;2X6;

    3X3;3X4;3X5;3X6.

    (3) Power:supply:380V±38V, 50Hz±1Hz

    (4) Total power:2.5Kw

    (5) Main machine power:0.25Kw

    (6) Main air pressure: 〉0.6Mpa

    (7) Bundling unite size and weight:2300X1250X1450mm(L*W*H), 1000kg


    5. Material requirements


    (1) Parent paper roll:diameter≤φ1600mm,width 420mm,core diameter φ76mm

    Gs 13.5~15.5g/m2(triple),16~18g/m2(double)

    (2) Film :PE with thickness 0.045 mm,width 115mm, diameter ≤φ460 mm,core diameter φ76mm, dark color mark (except green), size 4×12mm, equal distance (single film length)168±2mm;

    (3) Label:width: 25±5mm, equal distance ≥2 mm, color should be clear different with color mark.


    6. Other requirements


    (1) Main power supply: 380V±38V,50HZ±1HZ; 24 VDC;

    (2) Compressed air:pressure≥0.6 Mpa,flow rate≥48m3/h;

    (3) Nagtive pressure:pressure≥0.06 Mpa,flow rate≥480m3/h(roots vacuum pum, no need water).


    7. Product guarantee speed120 packs/min

    Finished products photos:



    After Sale Services


    Spare Parts


    YouYuan provides around-the-clock parts support to keep your business moving.

    • 24/7 breakdown support
    • 2,600+ part numbers stocked in our warehouse
    • Immediate response for non-stock parts requests
    • Professional team members dedicated to supporting your parts needs

    Installation

    We're here to get you started on the right foot.

    • Complete installation and start-up support

    • Start-up and calibration support

    • Staff training
